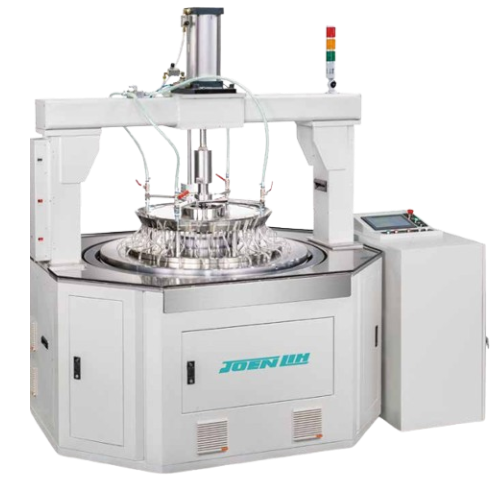

JL-D16 DOUBLE-SIDED LAPPING/POLISHING MACHINE

Model: JL-D16

Category: Semiconductor Smart Auto Solution

Booth No: N308

Characteristic

1. MACHINE FEATURES
- This machine is suitable for double-sided lapping operations on flat workpieces. With its high efficiency and high productivity, this machine is ideal for precision lapping in a mass production line.
- The lapping process creates outstanding flatness and parallelism between top and bottom surfaces and surface accuracy.
- The lapping mechanism running is designed with a planetary type design to achieve the optimal lapping performance and surface finish.
- The lapping mechanism is able to run clockwise and counter-clockwise.
- 5 sets of carrier (planetary carrier) allow for holding multiple workpieces for lapping simultaneously.
- An electronic proportional valve is used for pressure control, providing increased stability in pressure output.
- Upon customer request, the automatic thickness control is available (optional).
- The machine is equipped with a PLC controller in combination with the use of the touchscreen (optional), providing user-friendly operation
- The running speed of the lower plate is variable, with a range of 20~60 RPM.
- The upper / lower plates and the center gear are driven directly, ensuring smooth motions and high transmission accuracy.

2. APPLICABLE PART MATERIALS FOR LAPPING
This machine is applicable for lapping various materials of flat workpiece, such as semiconductor materials and various metals, non-metals, aluminum, stainless steel, and ceramics.
