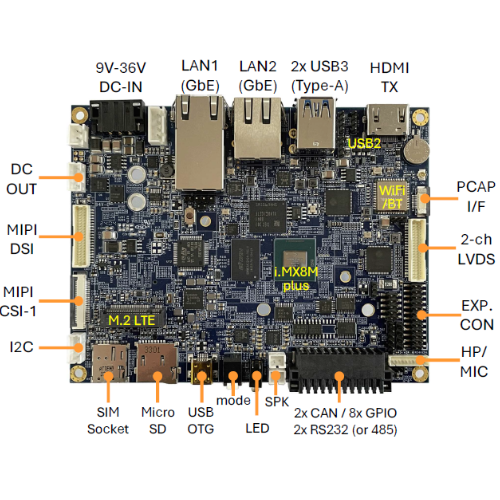

i.MX8M Plus SBC4100
Model: SBC4100
Category: Digital Transformation and System Integration
Exhibitor: IC NEXUS CO., LTD.
Booth No: N931
Characteristic
Dimension: 130 mm x 100 mm
RAM: 2GB LPDDR4 / 4GB LPDDR4 (optional)
Flash: 8GB eMMC
Multiple display interfaces
MIPI-CSI camera interface
+9V ~ +36V DC Input (optional over-voltage/current protection)
2x Gb LAN Interfaces (LAN2 optional)
Support POE (Power Over Ethernet) (optional)
2 x COM ports (RS-232 or RS-485)
M.2 socket for LTE/5G modem
2 x USB 3.0 host ports
microSD / CAN-FD / GPIO / I2C / SPI
Capacitive touch interface (I2C)
1x WiFi 5 / Bluetooth 5.0 (optional)
OP. Temp: -20 to 70 (-40 to 85 optional)
Android/Yocto for application developmen
