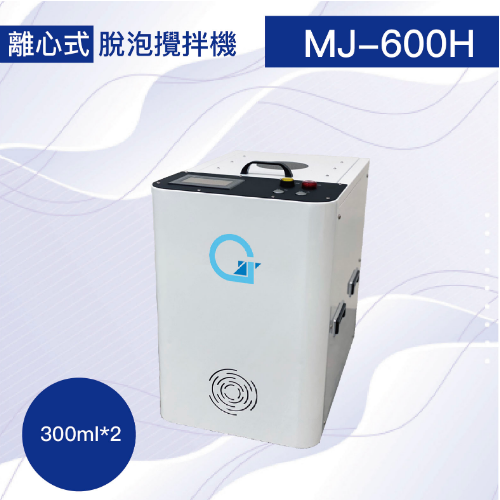

Centrifugal defoaming mixer

Model: MJ-600H

Category: Electronic Production Manufacturing Equipment

Booth No: M836

Characteristic

Uniformly mix, disperse and degas one or more raw materials.

5 major features:
1. Evenly dispersed and perfectly defoamed within five minutes (the maximum viscosity can be stirred up to 1 million cps).
2. The public and rotational speeds can be set freely, and the optimal operation mode can be set according to the material characteristics.
3. Two cups are stirred at the same time, doubling the production capacity.
4. Gear transmission with dual servo motors ensures stable speed and high yield reproducibility.
5. The blade-free contact design does not pollute the raw materials and improves the yield rate.

How it works:
The shear force generated by the rotation of the stirrer and the centrifugal force generated by the revolution, coupled with the vortex state and torque generated by the up and down convection, allow the material to be fully stirred and mixed in a very short time. When this kind of movement is carried out under vacuum, the volume of fine bubbles rapidly expands 760 times, and is removed at the interface in contact with the vacuum (133pa=1torr). Therefore, it only takes about 3 to 10 minutes to completely defoam and stir evenly. . (The actual time will vary slightly depending on the characteristics of each material, such as viscosity, mixing amount, etc.).

Application areas:
LED (A, B glue + phosphor), PCB printed circuit (green paint, solder paste), TP touch panel (silver paste, conductive paste), LCD panel (UV glue, liquid crystal), solar panel (silver paste, Silver aluminum glue), electronic parts (thermosetting packaging glue), automotive industry (sensing product materials), semiconductor packaging and testing (chip fixing silver glue), biotech medical (biological reagents, artificial joint materials)
