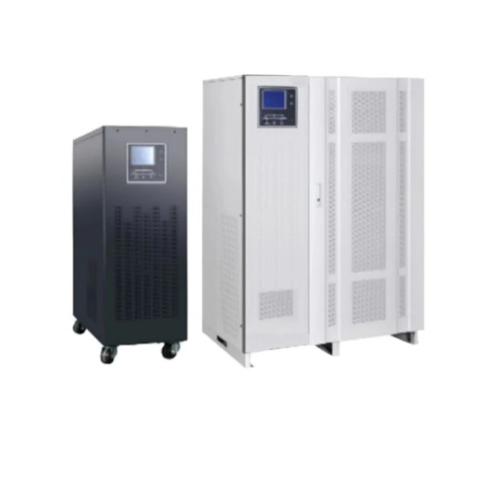

Uninterruptible Power Supply(U.P.S.)



Model: CTMU

Category: Battery Production Manufacturing

Exhibitor: YU CHENG POWER CO., LTD.

Booth No: N427



Characteristic



Performance Features

Dual Static Bypass Switch
The inverter and bypass sides are equipped with two static bypass switches composed of 12 SCRs (Silicon-Controlled Rectifiers), ensuring seamless switching between inverter and bypass power supplies, maintaining continuous and smooth output voltage waveforms. The control circuit uses "zero-crossing" switching technology, ensuring synchronization of the UPS with the grid with zero ms switching time when in sync, and less than 4 ms when not in sync. This ensures stable and uninterrupted output voltage and frequency regardless of grid frequency variations.

Self-Diagnosis and Self-Protection
The CTMU series UPS has strong self-diagnostic capabilities. It is equipped with 32 sensor monitoring points and features ultra-fast detection and response using DSP technology. The UPS can provide over 200 fault messages, real-time data logging, and device parameter settings. The diagnostic functions enable the UPS to enter protection mode immediately when a fault occurs. An emergency shutdown system is also included.

Charging and Battery Intelligent Management
The UPS includes an automatic adjustment function for the large current charger (1A-50A) and a self-diagnostic and self-maintenance system for the battery. Features also include automatic battery warning systems, periodic charge/discharge cycles, and no-load protection settings.

Human-Machine Interaction, Remote Monitoring, and Network Management (Optional)
The CTMU series UPS features a large, ultra-bright backlit LCD touchscreen with 320x240 pixel resolution, offering full Chinese display, making it ideal for domestic users. The LCD display shows over 200 pieces of information, continuously updating the status of the mains power and UPS operation. The UPS panel includes various function and parameter setting buttons to facilitate bidirectional interaction between the user and the system. The CTMU series UPS is designed for user customization. Optional Winpower power management software is available and is compatible with various power management software from Taiwan's Megatec. Using the RS-232 serial communication interface, the UPS can communicate with a computer or other monitoring devices, enabling multi-functional, multi-purpose monitoring and management operations. An SNMP card can also be added for network management systems
