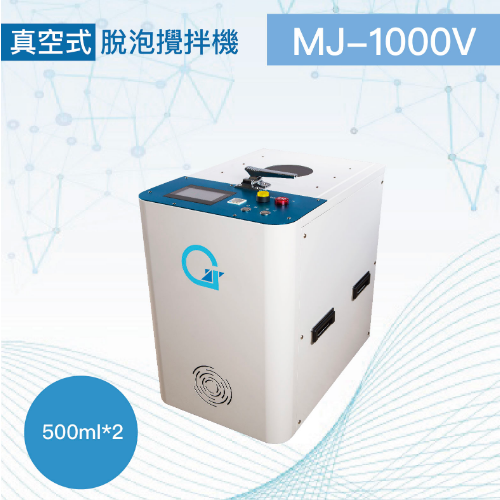

Vacuum Mixer
Model: MJ-1000V
Category: Display & Solution - New Display Products
Exhibitor: CGT TECHNOLOGY CO., LTD.
Booth No: N204
Characteristic
One or more raw materials are uniformly mixed, dispersed and defoamed.
5 major features:
1. Evenly disperse within five minutes, perfect defoaming (the maximum viscosity of which can be stirred is 1 million cps).
2. The rotation speed can be freely set, and the optimal operation mode can be set according to the material characteristics.
3. Double cups stirring at the same time, double the production capacity.
4. Gear transmission with dual servo motors, stable speed and high yield reproducibility.
5. The bladeless contact design does not pollute the raw materials and improves the yield.
How it works:
The shear force generated by the rotation of the agitator and the centrifugal force generated by the revolution, coupled with the vortex state and torque generated by the upper and lower convection, allow the material to be fully stirred and mixed in a very short time. When this movement is carried out under vacuum, the volume of fine bubbles rapidly expands by 760 times, and is removed at the interface in contact with the vacuum (133pa=1torr), so it only takes about 3 to 10 minutes to completely defoam and stir evenly. . (The actual time is slightly different according to the characteristics of each material, such as viscosity, stirring amount, etc.).
Application areas:
LED (A, B glue + phosphor) , PCB printed circuit (green paint, solder paste) , TP touch panel (silver paste, conductive paste) , LCD panel (UV glue, liquid crystal) , Solar panel (silver paste, Silver aluminum glue) , electronic parts (thermosetting encapsulant) , automotive industry (sensing product materials) , semiconductor packaging and testing (chip-mounted silver glue) , biotechnology and medical treatment (biological reagents, artificial joint materials)
