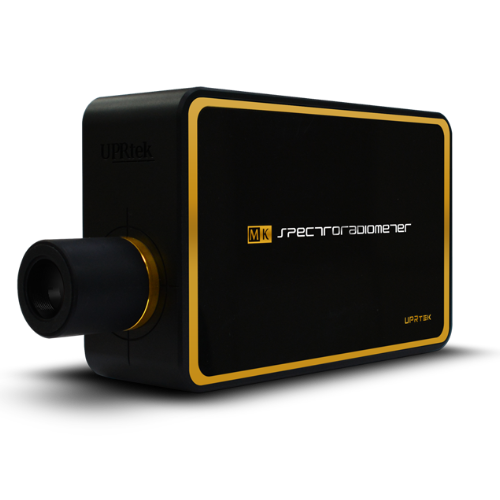

Spectroradiometer



Model: MD100N

Category: Micro & Mini LED

Exhibitor: UNITED POWER RESEARCH TECHNOLOGY CORP.

Booth No: L412



Characteristic



The MD100N Spectroradiometer provides high accuracy and high speed optical measurement of displays.

Through the use of grating spectroscopic technology and the development of high-speed algorithms, the MD100N redefines the measurement capability of spectroradiometers.
MD100N provides a comprehensive solution to satisfy the needs of all kinds of display measurement & display metrology.

High-speed measurement to meet the needs of production lines.
Using our own high-speed algorithm, we have achieved an unprecedented high-speed measurement capability for a high-end spectrophotometer, making its measurement speed almost the same as that of a low-end colour analyzer or colorimeter.
◎ Measurement time is around 200ms for low light (when brightness is less than 1 nits).
◎ Measurement time is around 80ms for normal brightness (when brightness is 100 nits)

The MD100N Spectroradiometer provides high accuracy and high speed optical measurement of displays.

Through the use of grating spectroscopic technology and the development of high-speed algorithms, the MD100N redefines the measurement capability of spectroradiometers.
MD100N provides a comprehensive solution to satisfy the needs of all kinds of display measurement & display metrology.

■ High-speed measurement to meet the needs of production lines.
Using our own high-speed algorithm, we have achieved an unprecedented high-speed measurement capability for a high-end spectrophotometer, making its measurement speed almost the same as that of a low-end colour analyzer or colorimeter.
◎ Measurement time is around 200ms for low light (when brightness is less than 1 nits).
◎ Measurement time is around 80ms for normal brightness (when brightness is 100 nits)

The MD100N has been introduced into the production lines of many brands and OEMs, and is the only measurement equipment specified by some brands.

■ Key Features
◎ Spectrophotometric probe type for production line measurement requirements
◎ Spectral measurement range: 380 ~ 780nm; Spectral data (SPD) can be storaged and output for further analysis.
◎ Provides SPD, Luminance (Lv), CIE Chromaticity (x/y; u‘/v’; XYZ), Color Temperature (CCT), WP (Peak Wavelength), WD (Dominant Wavelength), Duv, etc.
◎ Support the CIE170-2:2015 CMF, more in line with the human eye to observe the color perception factors, including 2 degrees and 10 degrees viewing angle, more suitable for wide color gamut display color measurement.
◎ Measurement of mainstream monitor parameters including DeltaE, Color Gamut, Gamma Correction, RT (Response time), etc.
◎ High dynamic brightness measurement range : 0.0005 ~ 5,000 nits ; Supporting HDR measurement
◎ Built-in ND filter for ultra-high brightness backlight unit measurement that reaches to 1million nits
◎ Algorithms are synchronised to eliminate measurement instability caused by PWM dimming or Dimming to provide accurate and stable measurement results.
◎ Standard PC software based on spectral measurements is available. SDK is also available to be compatible with client’s tool or other color tuning tool or color calibration software of 3rd party.
◎ Flicker measurement software such as JEITA, VESA Contrast, SVM, etc. are available for detecting the flicker of mobile phone displays and other products.
◎ Based on the spectral measurement, it is suitable for the inspection of blue light protection of screen such as ‘EyeSafe’ , etc.
