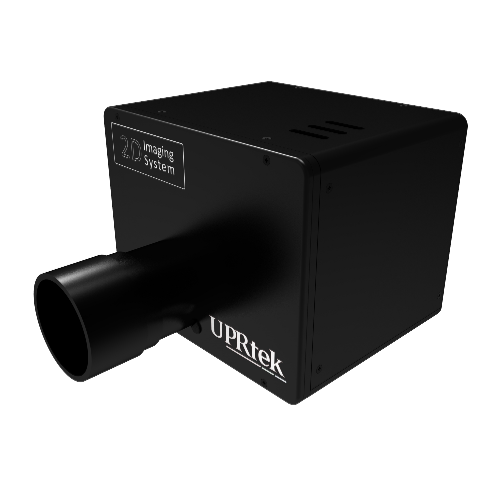

Imaging Colorimeter



Model: MA120C / MA120S / MA310S / MA650S

Category: Micro & Mini LED

Exhibitor: UNITED POWER RESEARCH TECHNOLOGY CORP.

Booth No: L412



Characteristic



Next generation of imaging colorimeter that strengthen CMOS image sensor and reference of high performance spectroradiometer for wide range of measuring for various Display, backlighting module, light source and relative products in a rapid and highly precision for display imaging measurements.

The system is particularly well suited for test and characterization of all kinds of display technology including LCD, OLED, miniLED, microLED, and microLED Chip on Wafer.
The combination of laboratory-grade accuracy, flexibility, speed, and durability makes it the most ideal for use on the production line.

■ The MA Series Imaging colorimeters offer a range of solutions for different resolutions, to meet a variety of measurement requirements in different applications.
◎ MA120S/MA120C (12 MP)
◎ MA310S (31 MP)
◎ MA650S (65 MP)

UPRtek’s MA Series Imaging Colorimeters ensures the color accuracy, easy execution and efficiency by means of reference high-performance spectrometer and our own algorithm, which can be used to calibrate the XYZ filter (located on the Color wheel) and the camera from the PC software directly.
Redefining precision in spatial light and color measurement by UPRtek’s MA Series Imaging Colorimeters.

■ Wide range of Dynamic Brightness measurement
Equipped with various types of ND filters to meet a wide range of dynamic brightness measurement.
The standard configuration can measure up to 500,000 cd/m2, which is suitable for high brightness measurement of backlight modules and headlight modules.
The MA650S mode / 65MP specification supports up to 100 million cd/m2 for microLEDs and other ultra-high brightness measurements.

■ Key Features
◎ 2D image measurement for Luminance (cd/m2), CIE Color (x/y, u’/v’, XYZ), CCT(K), duv, lambda D (nm).
◎ Luminance Uniformity, Color Uniformity, Brightness Distribution Map
◎ Better accuracy to align CCD with optional spectrometer
◎ FREE ROI & Diversity of Programmable regions (Single/Multiple/Cascade/Auto)
◎ Auto Focusing by PC Software controlling
◎ High Speed Measurement
◎ Wide Dynamic Measuring Range upto 500K cd/m2 or Higher upto 100 Million cd/m2
◎ MURA measurement by optional PC software
◎ BlackMura measurement according to DFF by optional PC software
◎ HUD Optical measurement according to SAE J 1757-2「Optical System HUD for Automotive」 by optional PC software

■ Key Application
◎ Optical Inspection for microLED Display & microLED COW (Recommending 65MP solution at least); Fulfillment of high resolution measurement ( ex, Less than 2.5μm/pixel)
◎ Lv, x/y, Uniformity, MURA in luminance & Color, WD & Brightness Map for MiniLED SMT, miniLED Display & its Backlight Unit
◎ Uniformity in luminance & Optical inspection for Automotive included BLU, CID, HUD, Meter Cluster, Head Lamp, etc.
◎ Lv, x/y, Uniformity, MURA in luminance & Color, WD & Brightness Map for OLED/QD-OLED/LCD Display
◎ Optical measurement for virtual imaging including AR Glasses (FOV / VID / MTF / Uniformity / CR / Ghost/ Distortion, etc)
◎ Black Mura (of DFF) for measurement of Automotive Display Uniformity
